CHAPTER 14 / CARE

Plan software and device updates

  1. 1Check the controller version path
  2. 2Use the firmware update window
STEP 2 OF 2

Use the firmware update window

Warning

A controller update from a USB drive can ask you to default the database. Press [End] to stop, unless the site plan says to default. A default erases all programming.

  1. Open the firmware update window.
  2. Use the supplied update instructions for the device.
  3. For a PC software upgrade, follow the upgrade instructions supplied with the package.

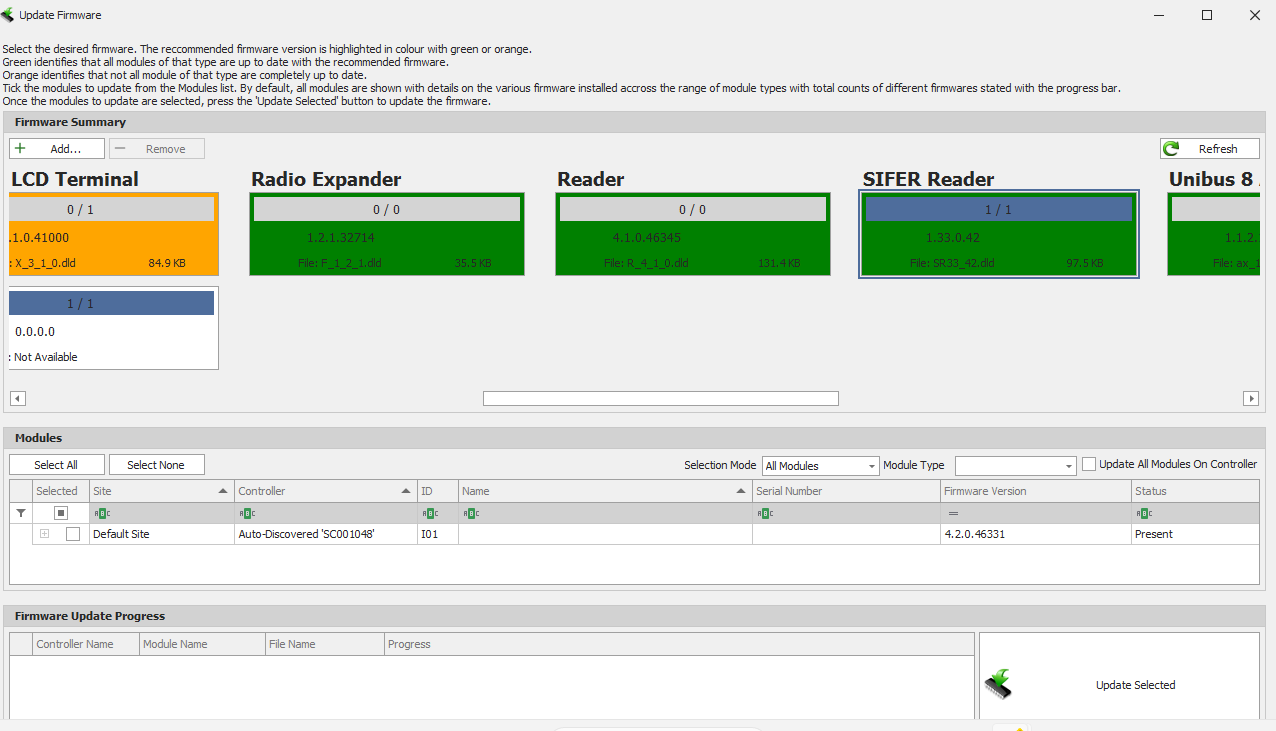

The Update Firmware window. It has three sections from top to bottom: Firmware Summary, Modules, and Firmware Update Progress. (opens full size in a new tab)
Update Firmware window. Work from top to bottom: Firmware Summary, Modules, Firmware Update Progress.Source: Integriti Software Release Notes, PDF page 20. This picture is from the V25.1.0 release notes in the V26 package. It introduced this window.
Note

The window has Firmware Summary, Modules, and Firmware Update Progress sections.

Expected result

You have the correct update instructions for the software or device.

I need help with this step

Check the installed version and required update path before you start.

If a step does not work, refer to the original documentation supplied with the software or contact support@innerrange.com.
