CHAPTER 07 / INSTALL

Make the first connection

  1. 1Open System Designer
  2. 2Check the services
  3. 3Log in for the first time
  4. 4Change the default password
STEP 2 OF 4

Check the services

  1. Look at the service icons before you log in.
  2. Check that each required service shows a green indicator.
  3. If a required service is stopped, right-click its icon and select Start.

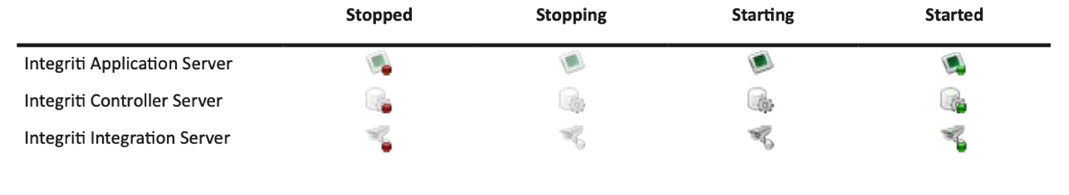

Table of server icons in four states: Stopped, Stopping, Starting, and Started. The Started icons have a green dot. The rows are the Application, Controller, and Integration servers. (opens full size in a new tab)
Server icon states. A green dot means the service is started.Source: Manual - Integriti User-Operator Guide, PDF page 5.
Right-click menu on a server icon. The menu has two items: Start and Stop. (opens full size in a new tab)
Right-click a stopped server icon. Select Start.Source: Manual - Integriti User-Operator Guide, PDF page 5.

Service A program that runs in the background.

Note

On a separate client PC, service icons might not show. They can also be missing when the app has no administrator rights.

Expected result

The required installed services show a running state.

I need help with this step

Do this local check on the server PC. The picture above shows each icon state.

If a step does not work, refer to the original documentation supplied with the software or contact support@innerrange.com.
