Integriti Field GuideIndependent installation guide PDF guide

CHAPTER 07 / INSTALL

Make the first connection

  1. 1Open System Designer
  2. 2Check the services
  3. 3Log in for the first time
  4. 4Change the default password
STEP 3 OF 4

Log in for the first time

Warning

Use these values only on a new, unchanged installation. On an existing site, use your assigned operator account.

  1. Select Use These Login Credentials.
  2. Enter the values below.
  3. Click Login.

Enter these values

Operator name
installer
Password
installer

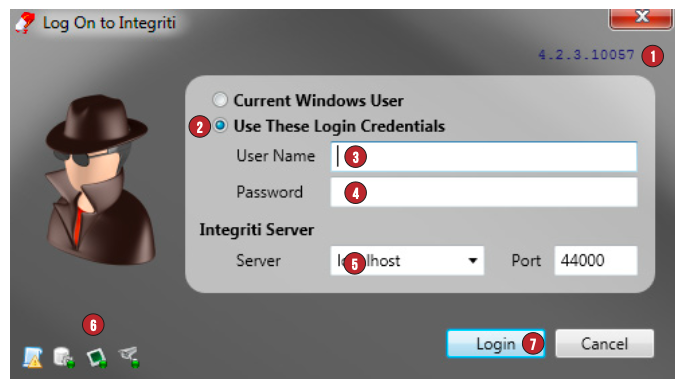

The Log On to Integriti window. Number 2 marks Use These Login Credentials. Number 3 marks User Name. Number 4 marks Password. Number 7 marks the Login button. (opens full size in a new tab)
Login window. 1 Software version. 2 Use These Login Credentials. 3 User Name. 4 Password. 5 Integriti Server settings: do not change them. 6 Server icons. 7 Login.Source: Manual - Integriti User-Operator Guide, PDF page 5. The picture shows an older software version. The number and some details on your screen can differ.
Expected result

System Designer opens the site.

I need help with this step

For an existing site, use the assigned operator account.

If a step does not work, refer to the original documentation supplied with the software or contact support@innerrange.com.

Search the installer FAQ
Manual referencesS4 · Manual - Integriti User-Operator Guide · PDF page 5 (opens in a new tab)S5 · System Configuration Handbook · PDF page 12 (opens in a new tab)
